Jeep Cherokee 8.0" Long Arm Lift Kit W/Rear Coil Conversion (1984-2001, XJ)

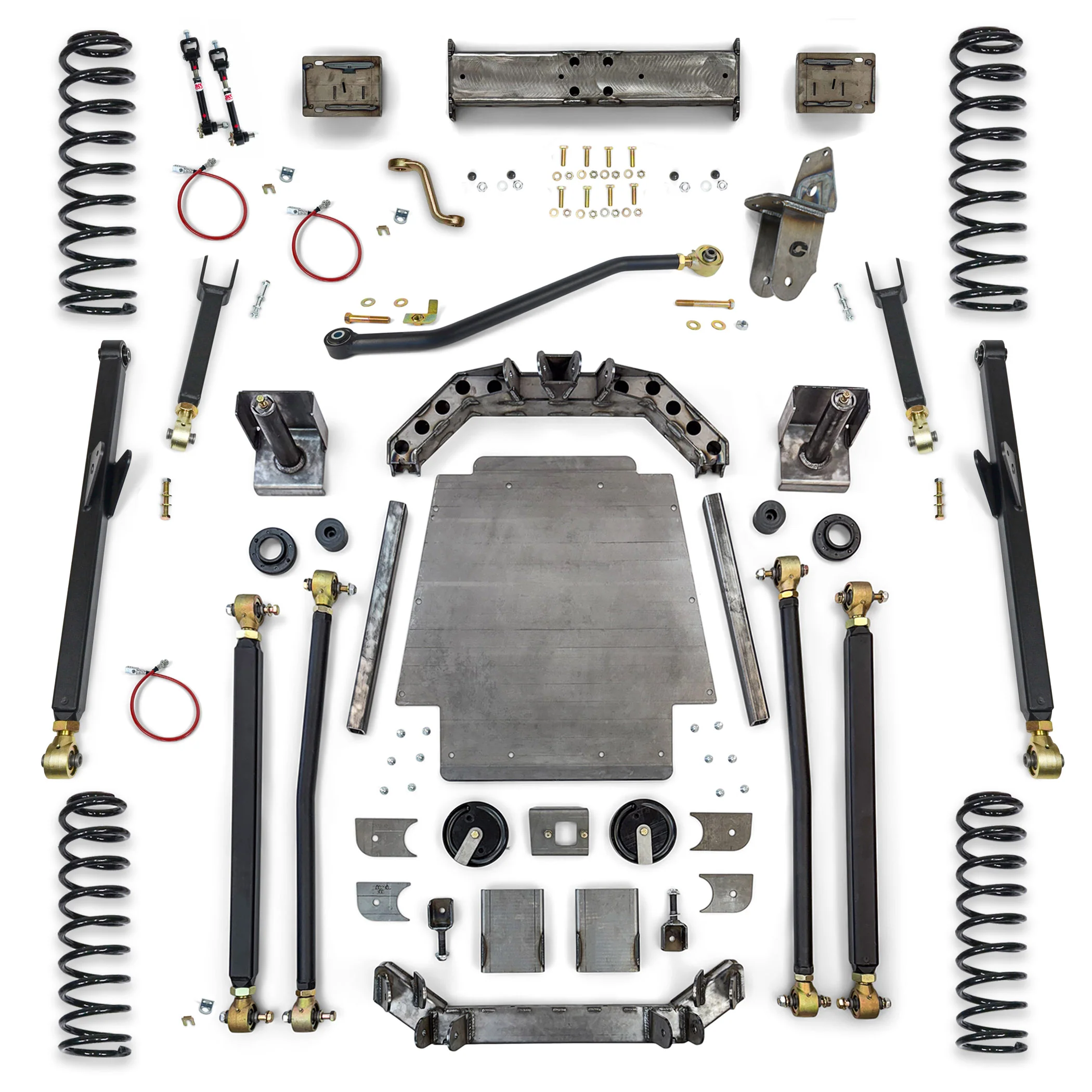

This specific 8.0 inch Cherokee XJ lift kit was designed to run 35 inches tires with some fender trimming due to the extreme flex this kit produces. Kit includes, a front 3 piece cross member, all 8 adjustable control arms with hardware, front and rear brake lines, front and rear coil springs, front adjustable trackbar and drop bracket, drop pitman arm, front sway bar disconnects, complete high clearance rear axle bracket kit, 1 piece weld in cross member, ¼ flat skid plate, 2 skid plate rails, 1 upper shock mount 2 upper coil bucket brackets.
- 8 Fully Adjustable Control Arms
- HD Adjustable Trackbar
- Trackbar Drop Bracket
- Drop Pitman Arm
- 1/4 Flat Skid
- High Clearance Rear Axle Bracket Kit
- Triangulated 4-Link Axle Truss
- Lifetime Warranty*
- MADE IN THE USA!
NOTES:
- You will need to drill and tap included for the 1" hardware to install this skid plate.
- You will need to fully drill through the two holes on the Rear Coil Conversion Crossmember for the two 4" bolts to pass through and use the included nuts.
- Shocks are optional and we recommend the Bilstein 5100s.
- Welding and cutting is required to install this lift kit.
- Custom exhaust is required.
- Moving the e-brake bracket maybe necessary on certain models/years.
- A SYE kit and CV style driveshaft is required.
